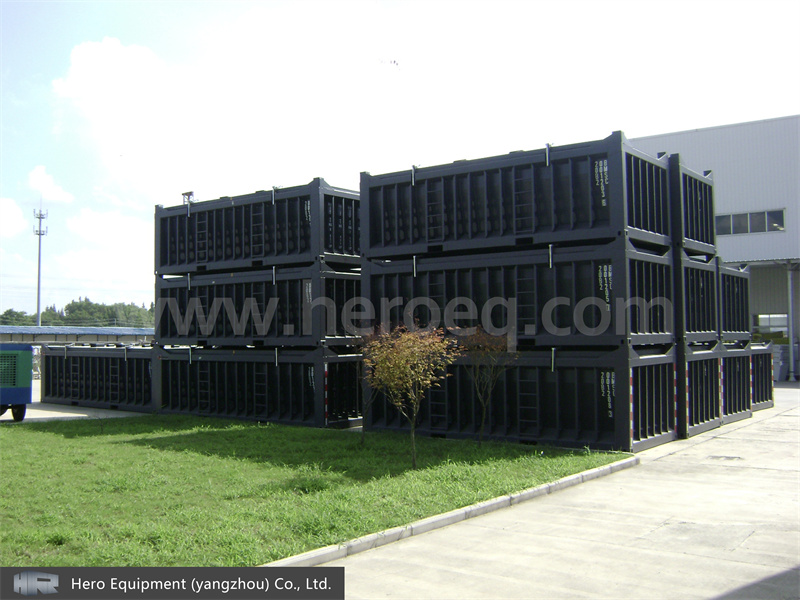

Ore containers are purpose‑built transport and storage units designed to carry bulk mineral ores from extraction sites to processing plants, ports, or intermediate storage facilities. Unlike general freight containers, ore containers must withstand the demanding characteristics of coarse, dense, and often abrasive materials, while also accommodating the rigors of intermodal transport by road, rail, and sea. Their structural design balances strength, durability, volumetric efficiency, and ease of loading and unloading, forming a specialized subset of bulk cargo handling equipment. Understanding the structural features of ore containers requires examining the materials, framework, lining systems, access configurations, reinforcement strategies, and integration with handling equipment.
1. Reinforced Framework for Heavy Loads
The primary function of an ore container is to carry high‑density materials that exert considerable static and dynamic loads on the container body. Accordingly, the framework is constructed from high‑strength steel alloys, often with increased wall thickness compared to standard shipping containers. The corner posts, main longitudinal beams, and transverse cross members are engineered to bear compressive, bending, and torsional stresses encountered during loading, transport, and unloading.
Corner castings are reinforced to interface securely with twist locks on ships, cranes, and rail wagons, ensuring the container can be lifted and secured without deformation. The base frame, or undercarriage, typically consists of deep, wide channel sections or tubular beams that spread concentrated loads over a larger area, preventing undue stress on the container floor and the transport platform underneath. This robust framework maintains structural integrity even when the container is repeatedly filled to capacity and subjected to vibration and shock loads.
2. High‑Strength Side and End Walls
Ore containers feature side walls and end frames made from corrugated or flat steel panels with enhanced thickness. Corrugation increases rigidity without excessive weight, allowing the panels to resist bulging under internal pressure from dense ores. The end walls are often constructed with vertical or diagonal bracing to counteract outward forces generated during payload compaction or sudden braking.
In some designs, the side walls are slightly sloped or stepped inward toward the top, reducing the free space at the upper section while maintaining volume efficiency. This geometry can help direct the center of gravity downward, improving stability during stacking and transport. Despite the robust construction, the panels are joined using continuous welds and reinforced seams to eliminate stress concentration points that could initiate cracks under repeated loading cycles.
3. Wear‑Resistant Lining Systems
Transporting ores involves constant abrasion between the cargo and the container interior. To prolong service life, ore containers commonly incorporate liners made from abrasion‑resistant materials such as Hardox steel plates, high‑density polyethylene, or reinforced rubber composites. These liners are bolted or welded to the inner surface, creating a smooth, hard barrier that absorbs the scraping action of ore particles.
The liner design considers the angle of repose of the specific ore type, ensuring that material flow during unloading does not trap particles in crevices that could accelerate wear. Some liners are segmented for easy replacement, minimizing downtime when maintenance is required. The lining also facilitates cleaning between loads, reducing the risk of cross‑contamination between different ore grades or types.
4. Floor Structure Optimized for Abrasion and Impact
The floor of an ore container experiences concentrated impact from falling ore during loading and sliding friction during unloading. Consequently, the floor panels are thicker than those in standard containers and are often fabricated from quenched and tempered steel. To further enhance durability, the floor may be reinforced with longitudinal ribs or crosshatch stiffeners that increase load distribution and prevent denting.
In certain configurations, the floor is angled slightly toward discharge outlets to assist gravity‑assisted emptying. Where hydraulic or pneumatic discharge systems are used, the floor may integrate reinforced openings with rugged seals to withstand repeated actuation without leakage or structural weakening.
5. Access Configurations for Efficient Loading and Unloading
Efficient handling of bulk ore dictates specific access features. Many ore containers are equipped with large, upward‑opening roofs or removable roof panels to allow front‑end loaders or conveyor systems to deposit ore without obstruction. Alternatively, some designs utilize open‑top configurations with tarpaulin covers or fixed superstructures that can be secured during transit to protect the cargo from weather while still permitting overhead loading.
Discharge options vary according to operational needs. Common solutions include bottom discharge gates with robust slide mechanisms, rear hopper doors that open downward, or combined side and bottom outlets. These gates are fitted with heavy‑duty hinges, locking pins, and seals to prevent accidental opening and to contain fine particulate matter. Quick‑release mechanisms enable rapid unloading, reducing turnaround time at processing facilities.
6. Stacking and Securing Provisions
Ore containers must be stackable to maximize storage and transport efficiency. The top rails and corner castings are shaped and positioned to interlock securely when stacked, distributing vertical loads evenly. Additional lashing points are integrated into the frame for securing the container to transport platforms or to adjacent units, preventing shifting during transit over uneven terrain or in heavy seas.
Some designs include guide rails or bolsters for integration with roll‑on/roll‑off ships or railcars, ensuring precise alignment and reducing the risk of impact damage during loading sequences. These provisions contribute to safer multimodal transport and more efficient yard handling.
7. Protection Against Environmental and Operational Elements
Although ore is less sensitive to moisture than some other bulk commodities, ore containers often operate in harsh environments with exposure to rain, dust, and extreme temperatures. The exterior surfaces may be treated with corrosion‑resistant coatings, such as epoxy primers and polyurethane finishes, to guard against rust and degradation. Seals around doors, roof openings, and discharge gates prevent ingress of water and fine particulates, preserving both the container structure and the cleanliness of the ore.
Ventilation features may be included to equalize pressure during temperature fluctuations, reducing the risk of structural stress from internal condensation or vacuum effects.
8. Integration with Handling Equipment
The structural design takes into account compatibility with common bulk material handling machinery. Lifting points correspond to standard spreader beam configurations used in ports and terminals. Fork pockets or lifting lugs may be incorporated for use with front‑end loaders in mining yards. The geometry of the container ensures that grabs, chutes, and conveyor transfer points can engage smoothly without striking vulnerable parts of the frame or liner.
This integration reduces the need for custom handling attachments, lowering operational complexity and increasing the versatility of the container across different sites and contractors.
9. Modularity and Maintenance Accessibility
To support long service life with minimal downtime, ore containers are often designed with modular panels and replaceable wear parts. This approach allows operators to renew heavily abraded sections without replacing the entire unit. Removable roof sections, bolt‑on wear plates, and detachable discharge gates simplify inspection and repair tasks.
Access points for cleaning and inspection are strategically placed to enable thorough checks of interior surfaces, liner condition, and mechanical components such as gate actuators and locking mechanisms. Regular maintenance is facilitated by the container’s structural layout, which minimizes the need for specialized dismantling procedures.
The structural features of ore containers collectively address the challenges of transporting dense, abrasive bulk minerals safely and efficiently. A reinforced steel framework provides the backbone for heavy loads, while wear‑resistant liners and thickened floors combat the erosive action of ore particles. Large access openings and optimized discharge systems enable swift loading and unloading, and stacking provisions support high‑density storage and transport. Protective coatings, sealing systems, and integration with standard handling equipment ensure reliability across diverse operational environments. Through this combination of strength, durability, and functional design, ore containers serve as indispensable links in the global supply chain for mineral resources, capable of withstanding the punishing demands of mining and bulk logistics while maintaining operational efficiency.
